● Overview

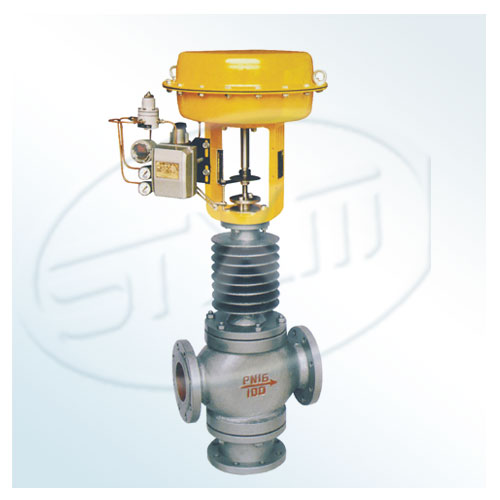

ZJHQ, ZJHX pneumatic film tee confluence , shunt valve using thin-walled cylindrical spool -shaped window -oriented , unlike the plunger -shaped piston guide bushing . Equipped with multi-spring actuator , has a simple structure , light weight , small size, and easy disassembly . Widely used for precise control of gases, liquids and other media process parameters such as pressure, flow , temperature, level maintained at a given value . Adapted to a fluid flowing through the three-way valve into Road or the merger of two fluids through the three-way valve into a fluid situation .
The series has three confluence and three shunt two kinds. Nominal there PN16, 40,64; nominal diameter range of DN25 ~ 300. For fluid temperature from -60 ℃ to +450 ℃. Leakage standard grade Ⅳ, flow characteristics are linear , parabolic two kinds.
● Main parts and materials
Body, bonnet : HT200, ZG230 ~ 450, ZG1Cr18Ni9Ti
Valve, valve seat : 1Cr18Ni9Ti
Corrugated diaphragm : NBR clip reinforced polyester fabric
Packing : PTFE , flexible graphite
Spring : 60Si2Mn
Membrane cover : A3
Putter, Stem : 2Cr13, 1Cr18Ni9Ti
Bushing : 2Cr13
Gasket: Rubber asbestos , 1Cr18Ni9Ti, graphite spiral wound gasket
