Air Filter Regulator
● Overview

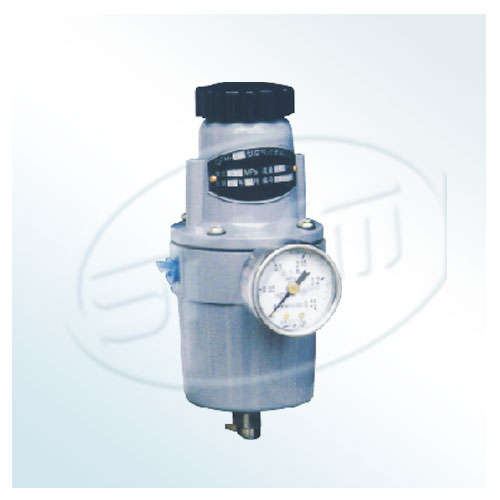

QFH Series Air Filter Regulator is one of the auxiliary devices pneumatic instrumentation. The air pressure from the air compressor of 0.3 ~ 1.0MPa, after filtration and purification, can be adjusted from 0 to 0.16; 0 to 0.25; 0 to 0.4; within the range of 0 ~ 0.6MPa pressure either output value remains stable. Types of pneumatic air supply pressure as instrumentation and pneumatic automatic device to the accessory device unit and other pneumatic equipment.
● Performance and Model Specification
3.1 Working conditions
Regulator should be able to work properly under the following environmental conditions;
(1) the temperature is -25 ~ +55 ℃;
(2) Relative humidity 5% to 95%
(3) vibration frequency less than 25Hz, amplitude less than 0.5mm.
(4) air regulator should not contain harmful impurities from corrosion using.
