Model: XB-42-1

Specifications: 300 ~ 1600

Nominal pressure: ≤ 0.1-0.15MPa

Suitable temperature: ≤ 350 ℃

Medium: compressed explosive gases

Mounting: welded, flanged

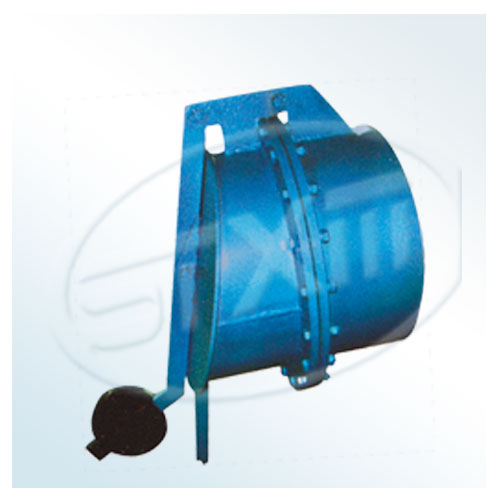

  Vent valve from the valve body, blasting film holder, valve cover, hammer and other parts. Blasting film holder mounted on the middle, bolted to the valve body. When the system overpressure, blast membrane rupture, instant relief, after the reset valve cover pops gravity. The vent valve is required when replacing the membrane vertically downward blast off valve and holder. Blasting films owned by the user according to the technical characteristics, mainly used in building materials, metallurgy, petroleum, chemical and other sectors.
